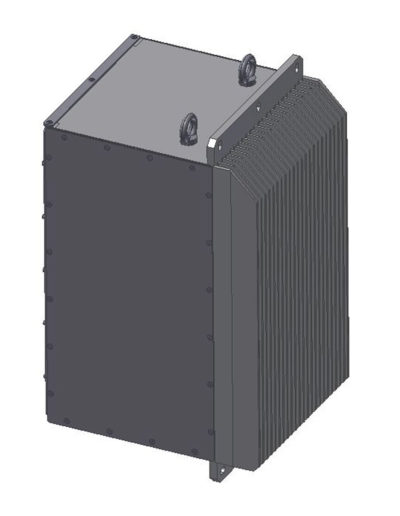

AC Motor Starter, 10 kVA, Vin 450-900 Vdc
DESCRIPTION: INVERTER STARTER
NOMINAL POWER: 10kW
INPUT LINE: 450/900 V DC
OUTPUT LINE: THREE-PHASE 380V 120Hz (current 15A)
DIMENSIONS: WDH [mm] 300x352x500 (without resilient)
MASS: MAX 50 Kg
MAIN PROJECT STANDARDS REFERENCES:
- MIL-STD-810 (Environmental conditions)
- MIL-STD-461 (EMC)*
- MIL-STD-167-1 (Vibration)*
- MIL-STD-740 (Noise)*
- MIL-S-901 (Shock)
*Test performed by laboratory
COOLING SYSTEM: FORCED AIR
IP GRADE: IP54
ELECTRIC INTERFACE: MIL CONNECTORS
SYSTEM (e.g.):
- AC MOTOR STARTER FOR COOLING SEAWATER PUMP
- TRIM PUMP
- DISTILLATE FILLING PUMP
Key Points
- Low airbone and structuraborne noise
- EMC compliant
Sector & Platform
- Naval 〉Surface ship
- Underwater 〉Submarine
